Product Category
Energy Storage Batteries
Low-voltage and high-voltage battery coverage from wall-mounted residential units to scalable rack-based project platforms.
Product Overview
Energy Storage Batteries for project requirements
Compare battery options by voltage platform, energy capacity and expansion requirements.
Storage Batteries
Energy Storage Batteries
Low-voltage and high-voltage battery solutions for home storage, backup power and project deployment.

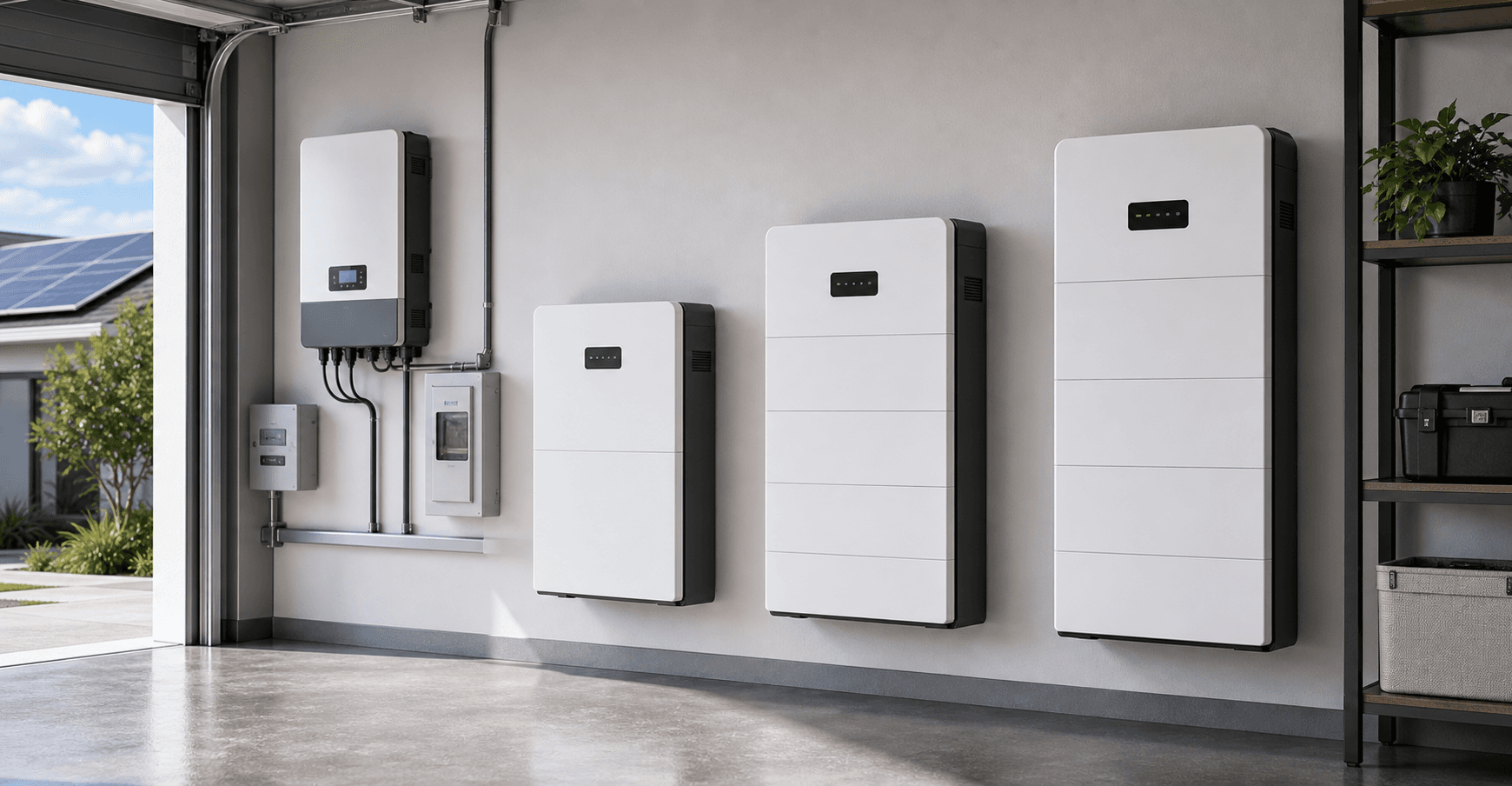

Wall-Mounted Range
5.12kWh to 10.24kWh
Rack Battery Option
16kWh low-voltage single-unit platform
High-Voltage System Range
64kWh to 241kWh scalable platform
Communication
CAN / RS485 across selected battery options
Applications
Application scopes served by this product category.
Residential Wall-Mounted Storage
Compact 51.2V battery families for home storage, backup and parallel expansion.
Low-Voltage Rack Storage
A higher single-unit energy format for residential or light commercial systems needing rack deployment.
High-Voltage Rack Systems
Scalable high-voltage platform for commercial or larger storage scenarios where system range matters more than one fixed SKU.
Hybrid system matching
Battery voltage platform and inverter architecture are confirmed together for system compatibility.
Selection Criteria
Technical and commercial factors for the applicable product configuration.
Voltage platform
Wall-mounted and low-voltage rack products serve different system architectures than high-voltage storage platforms.
Energy packaging
A 5kWh to 10kWh wall-mounted battery, 16kWh rack unit and 64kWh+ high-voltage platform serve distinct installation scales.
Expansion architecture
Parallel count, cluster size and scalability define the configuration for the intended deployment.
Protection and communication
IP rating, communication protocol and warranty terms complete the battery specification scope.

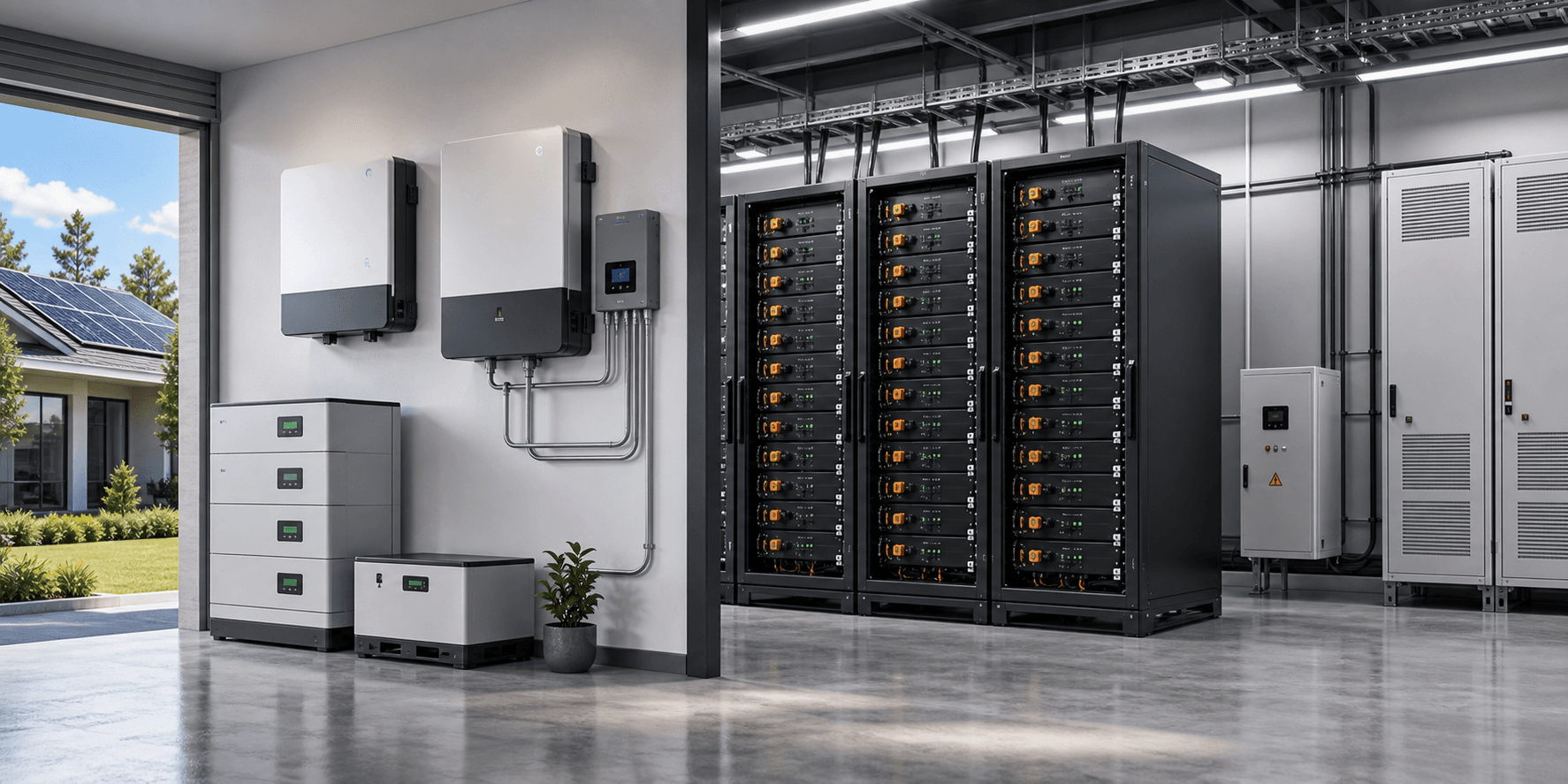

Storage Selection
Battery storage options by format and system scale
Separate wall-mounted, rack and high-voltage storage options by system scale and installation format.
Selection Considerations
Select equipment according to system requirements
Application, power class, voltage platform and operating mode define the applicable product family.
Selection Matrix
Match equipment to your application
Application requirements and technical inputs determine the model-level quotation scope.
Application
Recommended Direction
Confirm Before Quote
Application
Home storage and backup
Recommended Direction
LFP 5.12 / 10.24kWh low-voltage wall-mounted battery
Confirm Before Quote
Hybrid inverter model, indoor/outdoor placement and expansion count
Application
Residential or light commercial rack storage
Recommended Direction
LFP 16000 / LV 16kWh rack battery
Confirm Before Quote
Rack layout, inverter compatibility and parallel quantity
Application
Commercial high-voltage storage
Recommended Direction
LFP 16000 / HV platform from 64.31 to 241.15kWh
Confirm Before Quote
System capacity, PCS matching, protection and logistics scope
Category Information Scope
Category pages guide selection, then quotation confirms the exact model
This category page helps buyers compare application fit and equipment direction. Final model, brand scope, documents and delivery terms are confirmed after project inputs are reviewed.
Featured Series
Representative product series and available technical specifications for this category.
Wall-Mounted LV
LFP 5-10kWh LV Series
Low-voltage wall-mounted lithium battery family for residential solar storage, parallel expansion and indoor/outdoor deployment.
- Capacity options of 5.12kWh and 10.24kWh
- Parallel expansion up to 16 units
- 6000-cycle design with a 10-year warranty target
Voltage Platform
51.2V
Capacity Range
5.12kWh to 10.24kWh
Usable Energy
4.6kWh to 9.2kWh
Parallel Units
Up to 16
16kWh Rack LV
LFP 16000 LV
16kWh low-voltage rack battery designed for residential or light commercial storage systems with parallel expansion capability.
- Nominal energy of 16kWh
- Usable energy of 14.4kWh
- Parallel support up to 16 units
Nominal Energy
16kWh
Usable Energy
14.4kWh
Nominal Voltage
51.2V
Capacity
314Ah

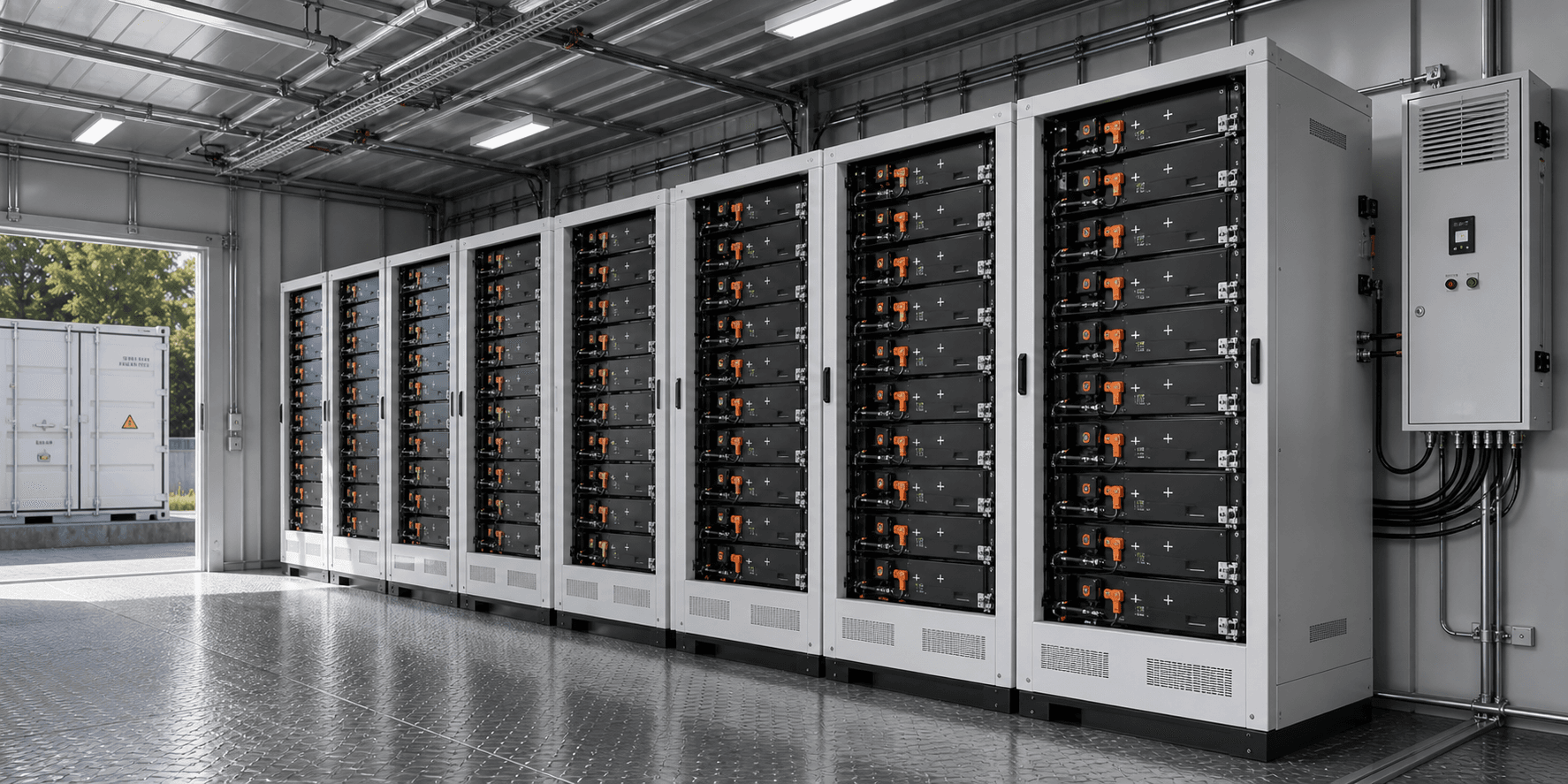

High Voltage Rack
High Voltage Rack Battery Platform
A scalable high-voltage rack battery platform built on the LFP 16000 / HV base module, with system SKUs from 64kWh to 241kWh.
- Built on the LFP 16000 / HV 51.2V 314Ah base module
- System SKUs from 64.31kWh to 241.15kWh
- Scalable up to 1000V
Base Module
LFP 16000 / HV : 51.2V 314Ah
System Range
64.31kWh to 241.15kWh
Module Count
4 to 15 modules per system
System Voltage
204.8V to 768.0V nominal
Commercial Comparison Notes
Commercial and technical differences across applicable product configurations.
Wall-mounted vs rack battery
Wall-mounted batteries optimize residential installation convenience, while rack batteries better support structured system integration.
Single product vs battery platform
LFP 16000 LV is a defined product SKU, while the high-voltage rack option is a configurable platform with multiple system capacities.
System compatibility
Battery selection should be confirmed together with inverter voltage range, communication protocol and intended operating mode.
For Quotation
Information to include in your inquiry
Rongkai confirms product scope, supporting documents and delivery requirements against the submitted project inputs.
- Required usable energy and backup duration
- Inverter or PCS model and voltage platform
- Installation environment and enclosure requirement
- Parallel or high-voltage configuration target
- Destination-market transport and compliance requirements
Request a Product Configuration
Submit project type, power range and installation requirements for product, document and quotation confirmation.
