Product Family
LFP 5-10kWh LV Series
Low-voltage wall-mounted lithium battery family for residential solar storage, parallel expansion and indoor/outdoor deployment.
Wall-Mounted LV
Residential low-voltage battery family
Low-voltage wall-mounted lithium battery family for residential solar storage, parallel expansion and indoor/outdoor deployment.
Highlights
- Capacity options of 5.12kWh and 10.24kWh
- Parallel expansion up to 16 units
- 6000-cycle design with a 10-year warranty target
- CAN / RS485 communication and IP65 protection
Voltage Platform
51.2V
Capacity Range
5.12kWh to 10.24kWh
Usable Energy
4.6kWh to 9.2kWh
Parallel Units
Up to 16
Cycle Life
6000 cycles
Protection
IP65
Source and Boundary
Product information requires final model confirmation

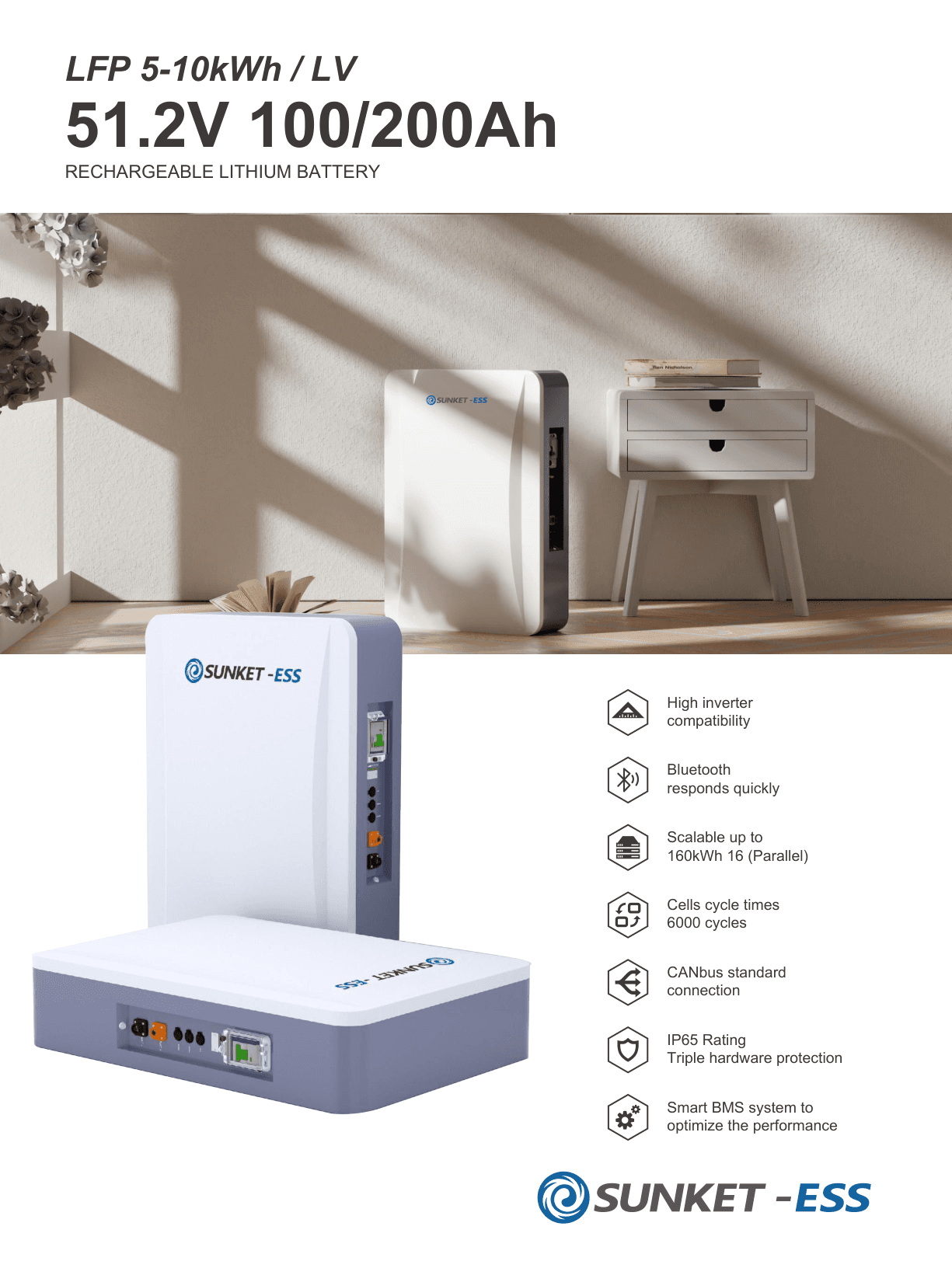

LFP 5-10kWh / LV rechargeable lithium battery datasheet
The 51.2V platform, 5.12/10.24kWh nominal capacity, IP65 rating, CAN / RS485 interfaces and 16-unit expansion limit are taken from the product datasheet.
Confirm inverter compatibility, applicable certification package and shipment configuration for the destination market.
Product datasheet covering both wall-mounted capacity variants.
Selection Direction
Match the product family to your requirement
Documented product directions are shown below. Final model, compatibility, document scope and supply terms are confirmed with your project inquiry.
Application
Product Direction
Confirm Before Quote
Application
Smaller home backup requirement
Product Direction
LFP 5kWh / LV - 5.12kWh nominal, 4.6kWh usable
Confirm Before Quote
Critical load power, backup duration and compatible inverter
Application
Higher residential self-consumption or backup
Product Direction
LFP 10kWh / LV - 10.24kWh nominal, 9.2kWh usable
Confirm Before Quote
Daily consumption, installation position and discharge requirement
Application
Expandable low-voltage storage
Product Direction
Parallel configuration up to 16 units
Confirm Before Quote
Inverter support, communication layout, protection and shipment scope
Quotation Input
Information required for model confirmation
Provide the available project details so Rongkai can confirm product suitability, applicable documentation and quotation scope.
Request Product Quote- Required usable energy and expected backup duration
- Hybrid inverter model and 51.2V compatibility
- Indoor or outdoor installation requirement
- Number of batteries or future expansion plan
- Destination-market transport and compliance document needs
Application Fit
Application areas covered by this product family, subject to final model and system compatibility confirmation.
Residential solar storage
Backup power systems
Indoor and outdoor installation
Hybrid inverter matching
Model Matrix
Compare the main variants available within this family.
LFP 5kWh / LV
Compact residential storage option
LFP 10kWh / LV
Higher-capacity wall-mounted option
Selection Guide
Key points for model comparison, system matching and quotation preparation.
Best Fit
A residential low-voltage battery family aimed at home solar storage and modular expansion.
System Match
Best matched with residential hybrid inverter systems where wall-mounted installation and simple expansion matter.
Selection Parameters
Capacity, voltage platform, cycle life, communication and protection level define the battery configuration.
Request LFP 5-10kWh LV Series
Send your destination market, capacity requirement, installation context and any document requirements for model confirmation and quotation.
