Product Family
TYPE 2 Mobile DC Series
A portable mobile DC charging family designed for Type 2 AC dual-input access and special deployment environments that need flexible charging support.

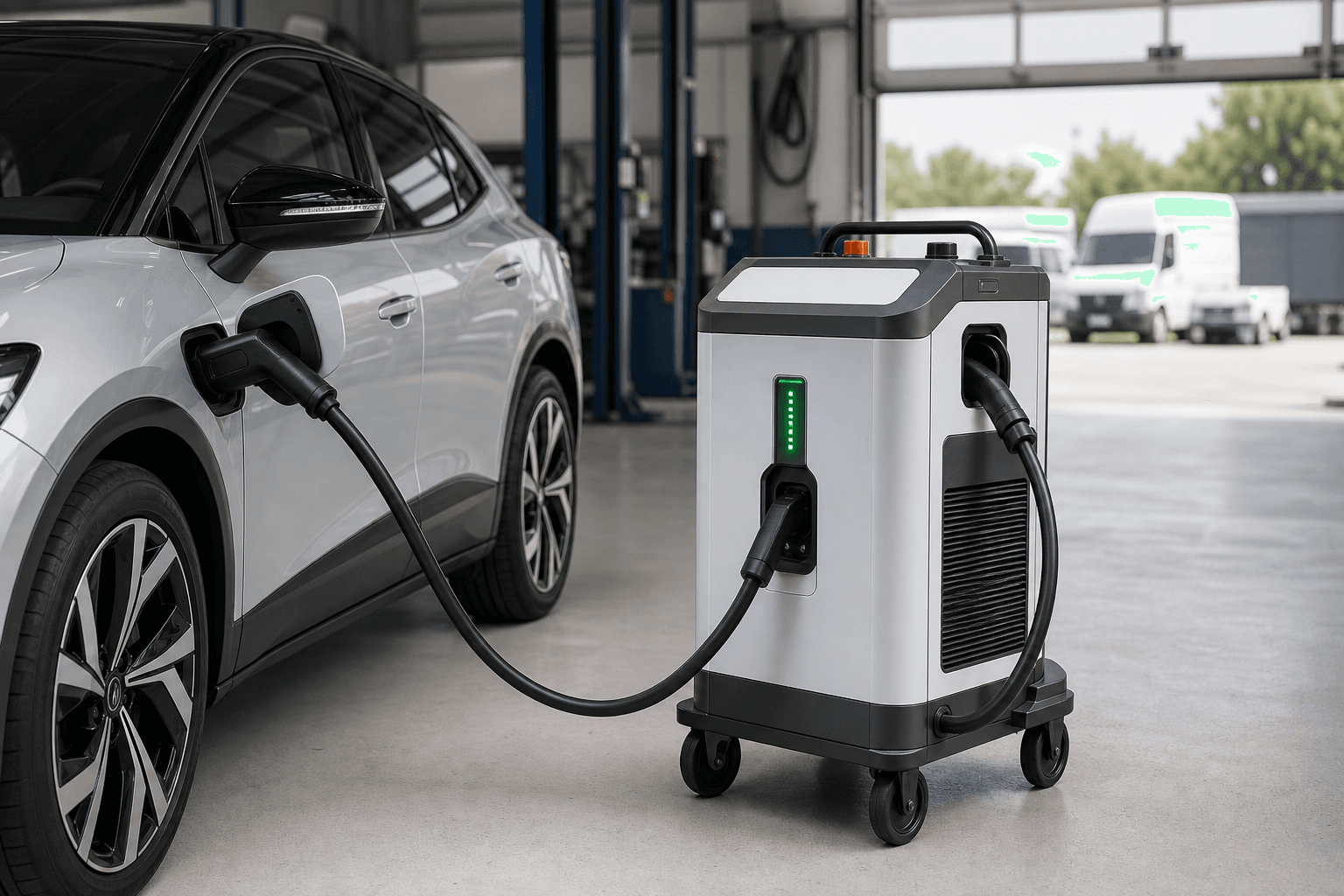

Mobile DC
Flexible mobile charger for temporary and service-led charging
A portable mobile DC charging family designed for Type 2 AC dual-input access and special deployment environments that need flexible charging support.
Highlights
- Supports Type 2 AC dual input from public AC charging-post access
- Portable charger family for flexible and special deployment environments
- Covers 7kW and 20kW power options
- IP43 protection with IK8+ crashworthiness
Power Coverage
7kW and 20kW
Output Voltage
200-750V, with 200-1000V optional
Input Logic
Type 2 AC dual input
Protection
IP43
Impact Rating
IK8+
Typical Use
Portable DC charging support
Source and Boundary
Product information requires final model confirmation
EV charger product family catalogue
The TYPE 2 mobile DC values are based on the referenced 7kW and 20kW portable variants with dual AC input and IP43 / IK8+ statements.
Confirm connector standard, destination-market conformity and charging source conditions before supply.
Share required connector and available AC input when requesting this document.
Quotation confirmation
Provide destination market, required capacity and system application so our team can confirm the matched model, brand scope and supporting documentation.
Start product inquiryApplication Fit
Application areas covered by this product family, subject to final model and system compatibility confirmation.
Temporary charging support
Special deployment environments
Portable charging access
Type 2 AC-connected charging scenarios
Model Matrix
Compare the main variants available within this family.
MC07750
7kW portable mobile DC charger
MC20750
20kW portable mobile DC charger
Selection Guide
Key points for model comparison, system matching and quotation preparation.
Best Fit
Suitable for portable charging needs, temporary deployment and special access scenarios where fixed infrastructure is not the first option.
System Match
Best used alongside broader EV charging solutions when the project also needs mobile or temporary charging flexibility.
Selection Parameters
Power class, voltage range, Type 2 AC input compatibility, protection level and portability define the application fit.
Request TYPE 2 Mobile DC Series
Send your destination market, capacity requirement, installation context and any document requirements for model confirmation and quotation.
